BevelMate ABA-3.0 Beveling Machine Pneumatic

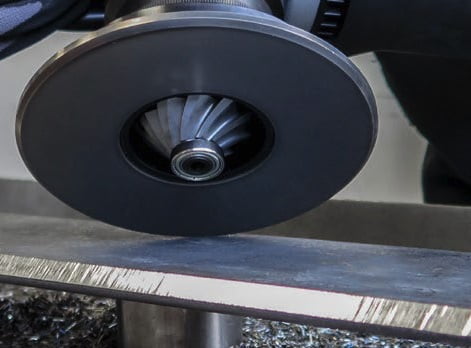

The new BevelMate ABA-3.0 is a perfect solution for high duty beveling and rounding work up to a depth of 12mm. The powerful pneumatic machine motor is suited continuous use. The new 3.0 version has precise depth adjustment and improved flange head for forming accurate weld preparations and perfect radius edges. These handheld machines are highly portable and very maneuverable for creating smooth bevels and radius’s on complex parts and internal corners and pipes.

Advantages:

  • Lightweight, ergonomic design
  • High duty pneumatic tool
  • Easily switch between bevel angles or radius sizes by changing a single tool
  • Highly durable and cost effective, patented tooling design
  • Tooling suitable for mild steels, aluminium and also hardened edges from laser and plasma cutting
  • Supplied in luxury protective hard case

Working Range:

  • Max Bevel Depth [mm] 12
  • Bevel Angles: 15, 22.5, 30, 37.5, 45, 52.5, 60
  • Rounding Radius: R2, R3, R4, R5, R6, R8
  • Air Consumption: 1.13m3 /min

Machine comes with:

  • BevelMate ABA-3.0 Pneumatic
  • Protective Plastic Transportation case
  • Quick Start Guide
  • Standard Tooling
  • (Cutting Heads must be purchased separately)
