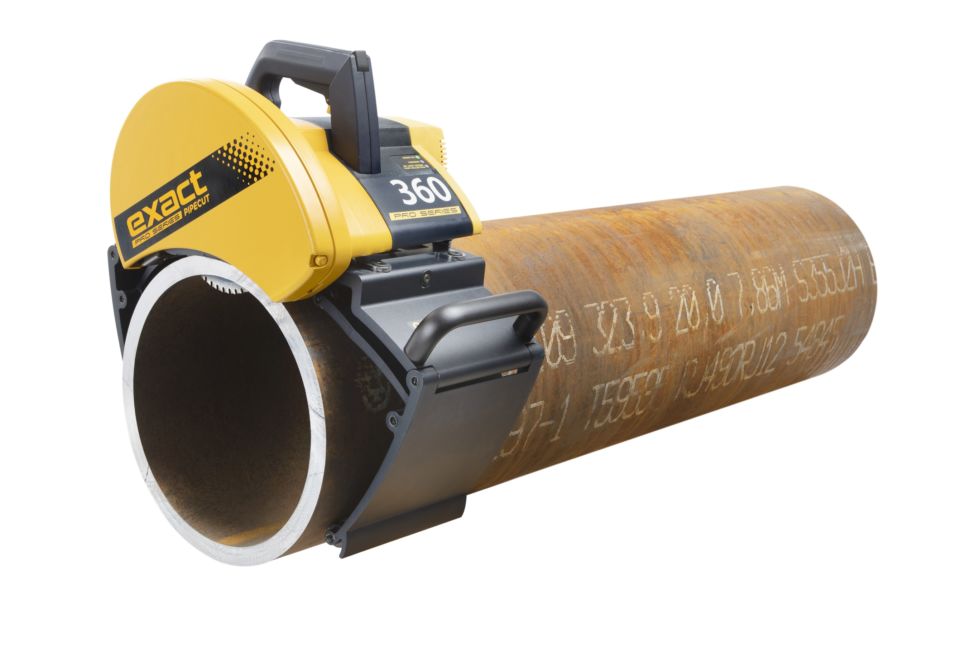

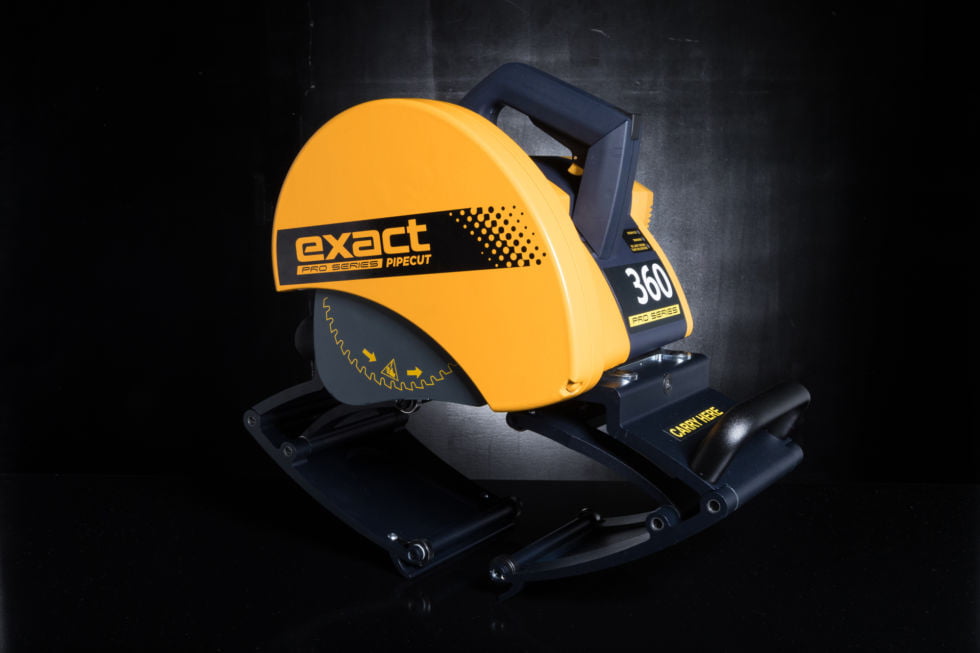

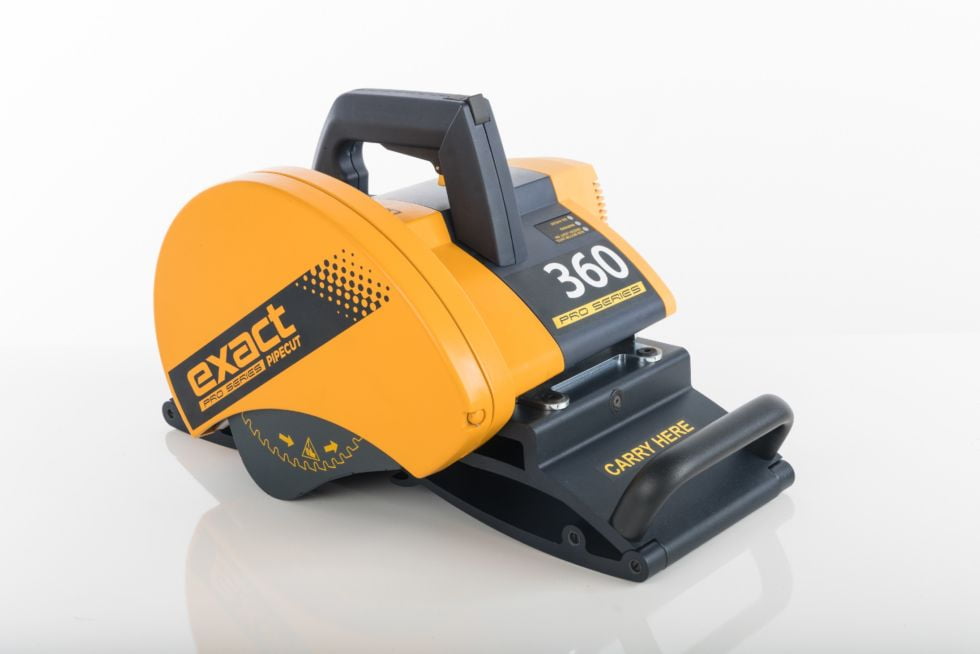

Exact PipeCut 360 PRO System

The Exact PipeCut 360 PRO is an all new design machine for cutting large diameter and heavy wall thickness pipe. Features include two-stage motor speed control for different materials, constant torque, soft start, automatic overload protection and a traffic light system for the operator feed speed. The PipeCut 360 PRO cuts easily, even when cutting the toughest of cast iron pipes. It has a robust design with strong 2500W motor and construction to withstand even the most demanding of conditions.

Advantages:

  • Safe Cutting with protected blade and machine fixed onto pipe.
  • Wide Cutting Range
  • Fast and Simple Set up
  • Cold Cut
  • Uniform, Square pipe finish

Specifications:

  • Voltage / Power 230V / 2500W
  • Voltage / Current 230V / 15A
  • No-Load speed I=1900 r/min, II=2885 r/min
  • Blade diameter 165mm (6.50”)
  • Mounting bore 62mm (2.44”)
  • Weight 17,5kg
  • Range of use 75mm – 360mm (3”- 14”)
  • Max. pipe wall 20mm steel
  • Max. pipe wall 50mm plastic

Machine Delivery Includes:

  1. PipeCut Bag 3
  2. Exact PipeCut 360 PRO pipe saw
  3. Pipe Support 360 Double and 2x 360 Single
  4. Operating instructions
  5. Hex socket key 5 mm and 2 mm fitted to the machine
  6. TCT 165 blade fitted to the machine
  7. DVD video disc including instructions

Exact 360PRO Series Video
